The FlyTV Prime 30 / 30FM featuring the Philips SAA7130 offers high quality TV programs and display video on your PC. You will never miss any exciting sport games or live news. It turns your computer into a live Home Entertainment Center. The application software supports TimeShifting, MPEG recording, video editing and AVI to MPEG file conversions for convenient TV viewing/capturing entertainment. Moreover, it is also your best partner for FM radio.




Watching live TV, playback video on PC



OSD (On Screen Display) function



Capture TV, video, & Snapshot still image
You can capture any size image of your favorite TV program, video, and save your own Digital Photo Album or keep it in your PC with other digital images.



Real-time MPEG-1,2,4 video recording
Save your favorite TV programs or videos in high-quality MPEG 1/2/4 formats! It supports other input sources, such as a TV signal, a camcorder or other analog devices.



Channel rename & up to 25 channels review
You can conveniently preview a series of 25 channels at a time. You will see a thumbnail image of each channel, and you can choose the TV program you want.


Auto scan up to 125 TV channels and favorite channel editing

Timeshift featured to pause, forward, rewind live TV
Timeshift allows you to pause a live broadcasting and then return to it after few minuts, or even hours later and continue from where you left. You can also schedule a recording while you're away and then listen to the show at a later time. This is considered time-shift recording as well.

Timeshift
Live stream

  Scheduled TV recording
You can set to record a show days in advance. With the TV Recording Scheduler you can watch your favorite TV Program whether you are sitting in front of your PC or not.
  Create and edit digital videos
  FM radio reception (only FM model)
Auto scan FM channels
  Hot key to control TV CH up/down & Vol +/-
  TV channel Finetune +/-0.25MHz


VBI supports Teletext




Remote control

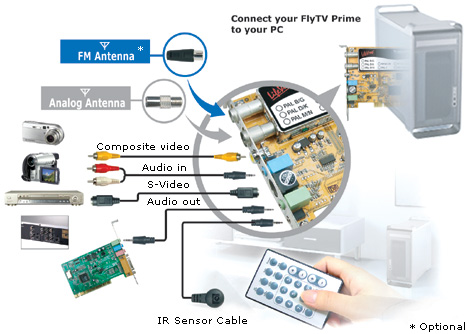

Interface
PCI 2.2
TV Input
RF jack
Video Input
S-Video
Mini-Din 4-pin jack
Composite Video
RCA jack
Audio Input
RCA jack
Audio Onput
RCA jack
FM radio FM model optional
Remote 2.5mm phone jack (female)
Dimension 120mm(L)x100mm(W)x180mm(H)

Supported TV tuner type
  Versatile TV tuner type: NTSC, PAL BG, PAL DK, PAL I, SECAM LL'
2-in-1 TV tuner type: PAL BG+DK, PAL DK+I
Pan-European 4-in-1: PAL BG+ DK+ I+ SECAM LL'
  FlyTV Prime 30 is the first TV card in the world to utilize the Philips SAA7130 chip-the 9-bit video ADC PCI video decoder.
Product Name Model No. FM Radio Main Chip TV Sound PCB size
FlyTV Prime 30 LR138   SAA7130 Mono Standard
FlyTV Prime 30FM LR138F * SAA7130 Mono Standard
FlyTV Prime 30 LP LR136   SAA7130 Mono Low Profile
FlyTV Prime 30FM LP LR136F * SAA7130 Mono Low Profile








  • Outdoor antenna or cable TV connection
  • Pentium III 500MHz or higher processor
    • MPEG-1 real-time encoding: PIII® 800MHz or AMD Athlon® 800 or higher
    • MPEG-2 real-time encoding: P4® 1.6GHz or AMD Athlon® 1.6 or higher
    • DVD real-time encoding: P4® 2GHz or AMD Athlon® 2GHz or higher
  • 128MB of system memory ( 256MB is recommended )
  • Windows 98 SE / Me / 2000 / XP with DirectX 8.1 installed
  • DirectX 8.1 compatible VGA card
